AROOF ROOF SYSTEM

In the creation of "roof system", which is one of the most important parts of the buildings; design, climatic and geographical features are determinative. The resistance of roof component to atmospheric conditions, compatibility with each other and quality of the materials forming roof components are effective in a longer lifespan of the "roof system".

AROOF roof panels are developed to provide high level thermal insulation, maximum energy saving, increase comfort and longevity of the roof system.

AROOF roof panels provide innovative and environmentally friendly solutions to the roof system. AROOF panels are a great alternative for investors, building designers, roofers compared to classical systems.

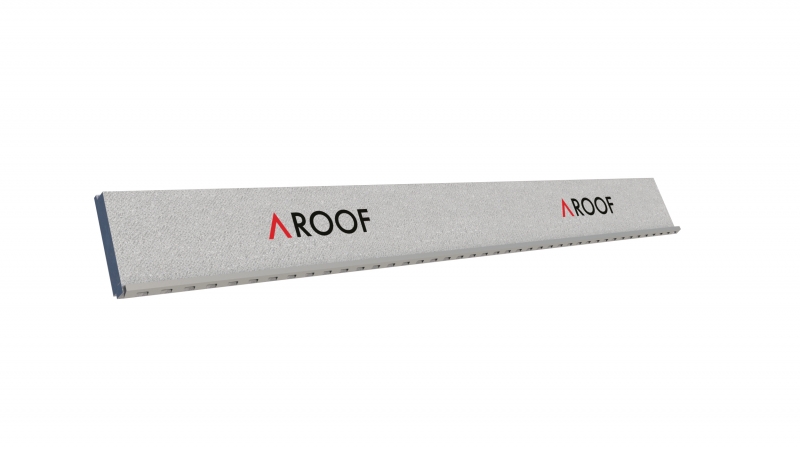

AROOF Roof Panel

AROOF offer the highest performing panel products with a strong commitment to sustainability. AROOF panels are designed to provide a high energy-efficient roof system, excellent thermal insulation and ventilation on the roof.

AROOF is an ideal solution for all types of pitched roof systems in construction of new roof systems and resorating old roofs.

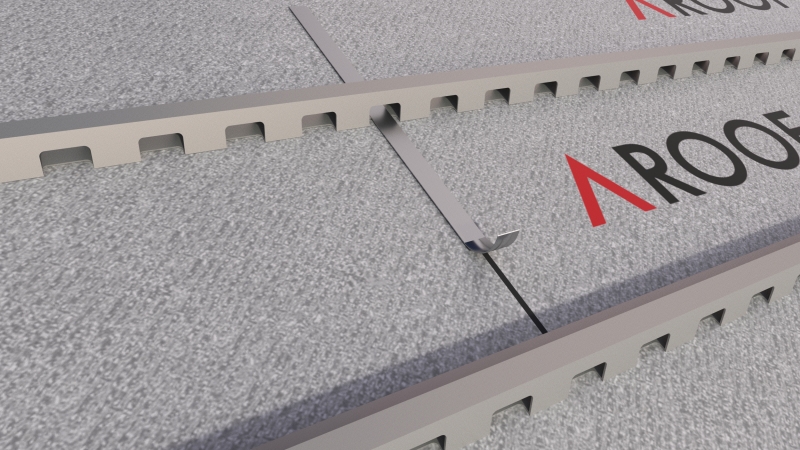

Components of AROOF Panel

  • Extruded polystyrene core (XPS-32-36 kg / m3)
  • Embossed aluminum skin plates on both side of the core

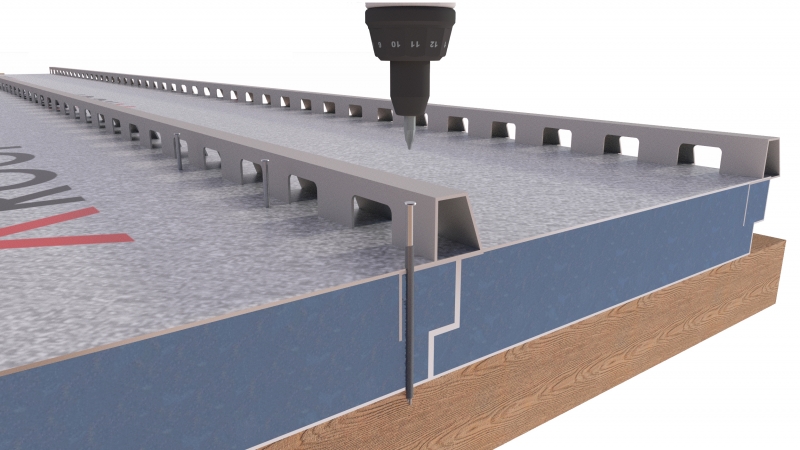

  • Special designed Aluzinc profile integrated into the core

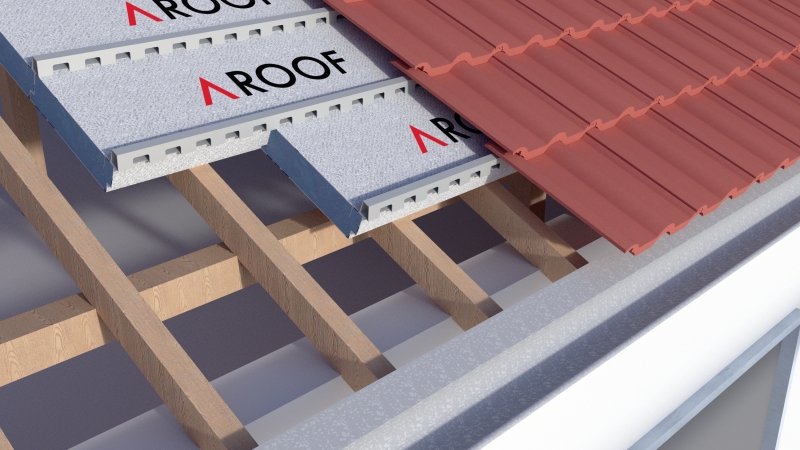

With AROOF Roof System, the roof is completed in four stages.

  • Constructing the roof frame using of wooden materials or steel profiles (Purlin spacing 60-65 cm)

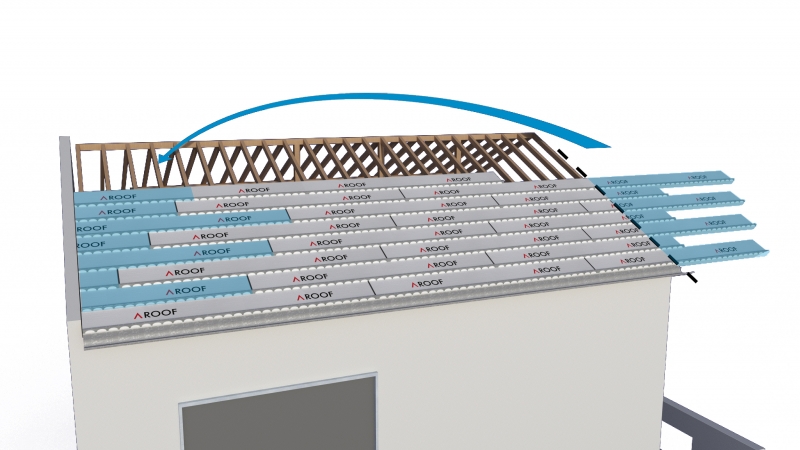

  • Installing AROOF panels quickly and easily on the roof frame (thanks to the lightness, high maneuverability and workability of the material).

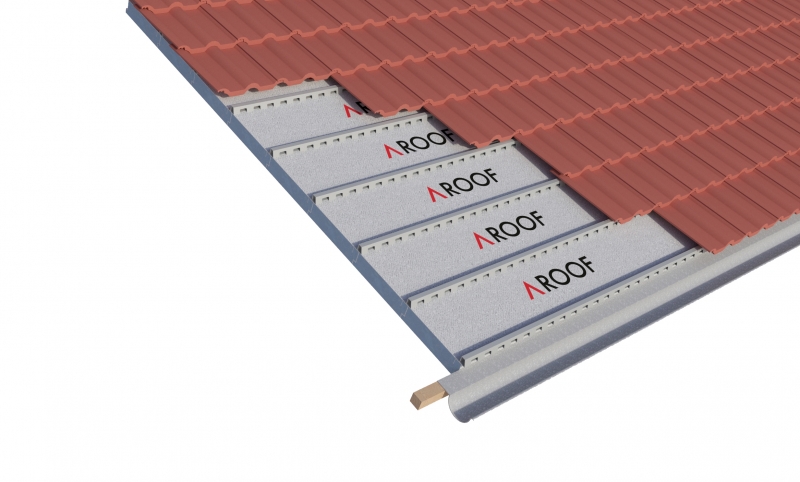

  • Laying roof tiles on AROOF Panels (Compatible with any concrete tile brand)
  • Completing roof system by installing Roofer component on the ridge line, valley, wall and chimney bases, roof exit.

Advantages

  • Provides summer and winter insulation
  • non-heat conductive

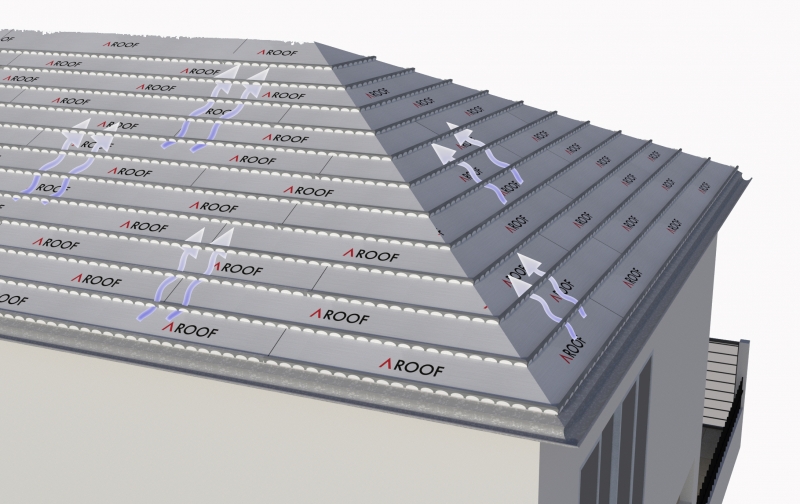

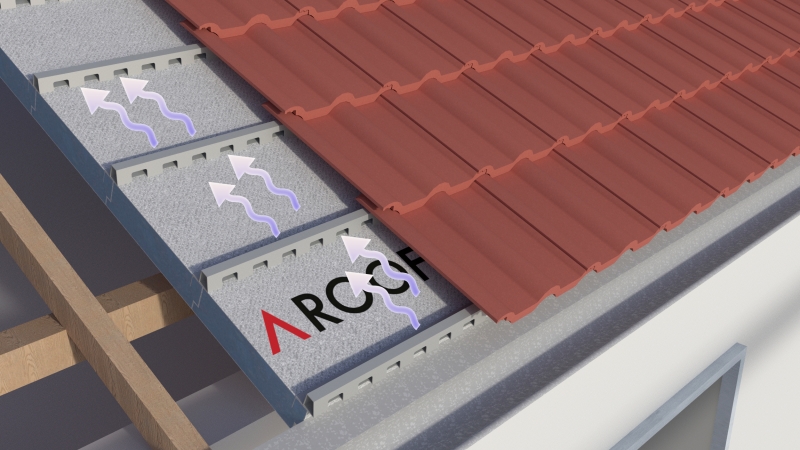

  • Provides ventilation
  • Avoid leaking
  • Used in new roofs and existing roofs renovation
  • Maximum compatibility
  • Quick and easy installation
  • Provides life comfort
  • Reduce construction time and costs

Aroof Products

Aroof References

    Sorry, no reference yet.

Aroof Frequently Asked Questions

Q1- Can I get support for the application of AROOF Roof Panels?

You can get technical support from ARAL supervisor and installation support from Aral professional workman (ARAL EXPERT) to install your Roof Panels.

Q2- Can I save energy with AROOF Roof Panel system?

AROOF Roof Panels are designed to create a high energy efficient roof system by guaranteeing excellent thermal insulation and ventilation. One of the advantages of AROOF panel is that it covers your roof and completes the sheathing if your building has sheathing.

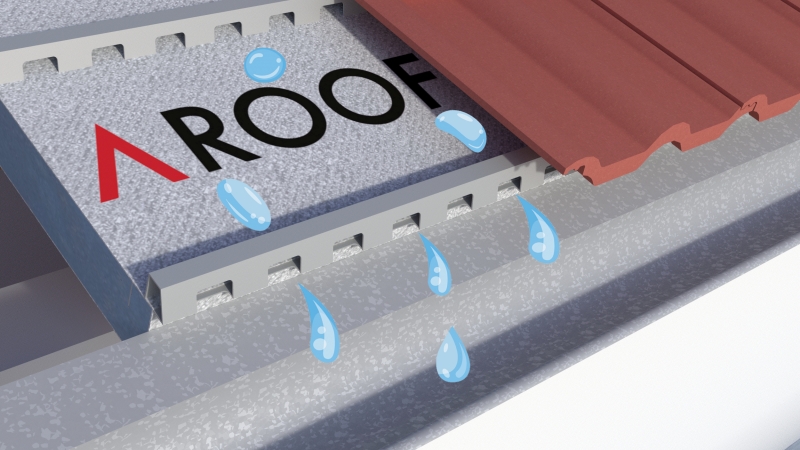

Q3- Are AROOF Panels affected by rain?

AROOF Roof Panels are not affected by water and rain, an advantage of AROOF Roof Panel is that it protects the structure from water in rainy weather until the roof tile is laid.

Q4- Are AROOF Roof Panels easy to curry?

AROOF roof panels are easy to curry horizontally and vertically.

Q5- Can the roof system be completed faster with AROOF Roof Panels compared to the classical roof system?

AROOF Roof system can be completed twice as fast as the conventional roof system.

  • Constructing the roof frame using wooden materials or steel profiles (Purlin spacing 60–65 cm)
  • Installing AROOF panels quickly and easily on the roof frame (thanks to the lightness, high maneuverability and workability of the material).
  • Laying roof tiles on AROOF Panels (Compatible with any concrete tile brand)
  • Completing the roof system by installing Roofer component on the ridge line, valley, wall and chimney bases, roof exit.

Q6- At what stage is AROOF Roof Panel used in the roof system?

After constructing the roof frame, AROOF panels are quickly and easily installed on the roof frame (thanks to the lightness, high maneuverability and workability of the material).

Q7- Can AROOF Roof Panels be walked on?

Yes, you can walk on AROOF Roof Panels while working.

Q8- After AROOF Roof Panels are installed, do I have to produce lath before tile laying?

No, there is no need for lath. AROOF roof panels are integrated with Aluzinc alloy special profile. Roof tiles can be laid directly.

Q9- Are AROOF Roof Panels first produced panels in Turkey?

Yes, AROOF Roof Panel are Aral Grup’s innovation and are the first roofing panels in Turkish roofing market.

Q10- Is there a need for thermal insulation in the AROOF Roof Panel system?

There is no need for thermal insulation in AROOF Roof Panel system. Because the core of the AROOF panels are made of extruded polystyrene material, it provides thermal insulation.

Q11- Is there a need for water insulation in AROOF Roof Panel system?

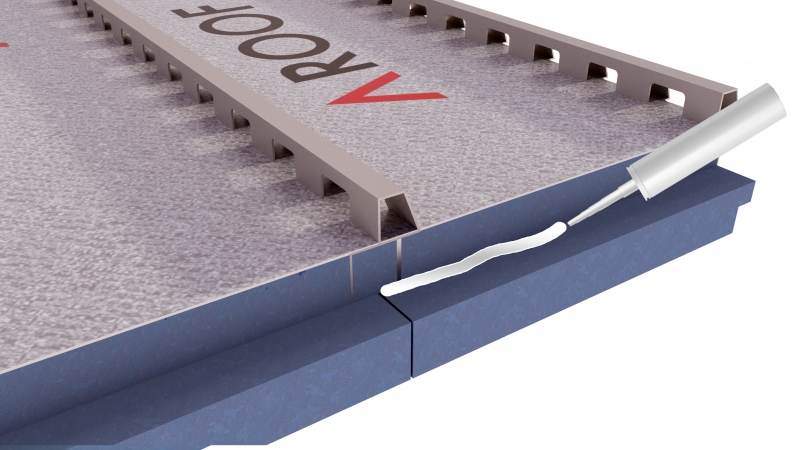

While making AROOF Roof Panel system, the panel joints should be bonded together by silicone on the roofs with a slope of more than 30%, and water tightness is ensured by applying Roofer aluminum butyl tape at the two panel joints. A secondary waterproofing should be done on roofs with a slope of less than 30%.

Q12- Do I have to use OSB or any other panel on the roof skeleton before installing AROOF roof panles?

In AROOF Roof Panel system, there is no need for OSB or any other panel sheet.

Q13- How to install gutter line on the AROOF Roof Panel system?

In AROOF Roof Panel system, a specially designed wooden lath is nailed to the eaves part of the panel depending on the size of the panel (5 cm-6 cm-8cm). The gutter is fixed on this special designed lath.

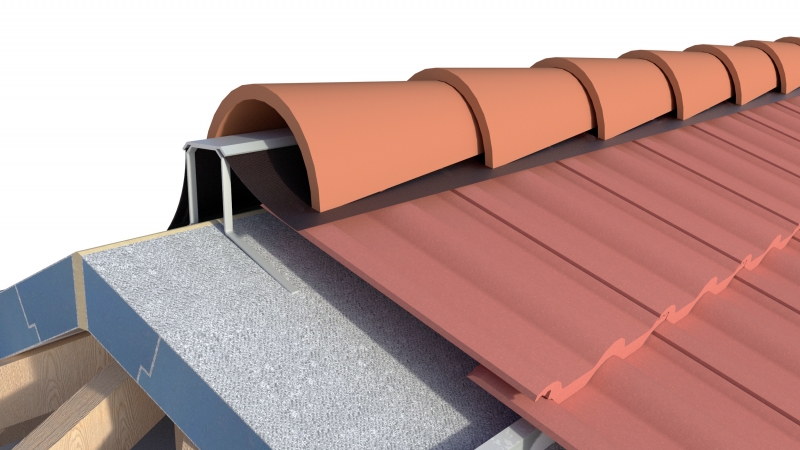

Q14- How should I install the ridge line details in AROOF Roof Panel system?

In AROOF Roof Panel system, you can install the ridge line by applying the dry ridge system (ridge tile+ ridge tape) with ROOFER accessories.

Q15- How can I install valley in AROOF Roof Panel system?

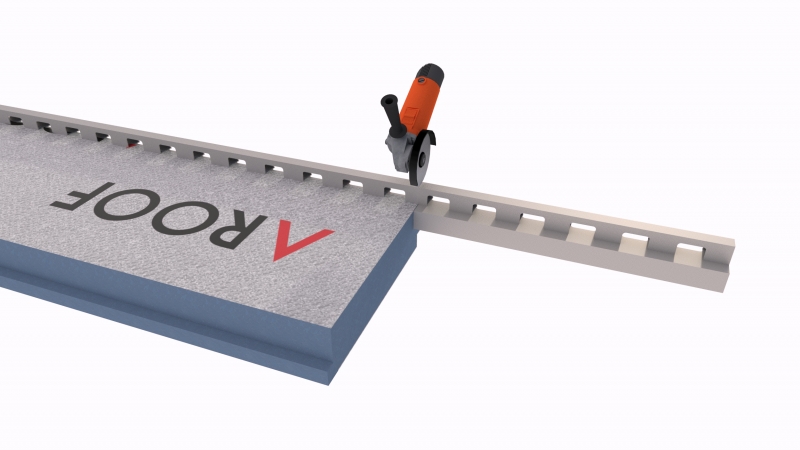

In AROOF Roof Panel system, after finalizing the panel application, the aluzinc profile on the panel is cut with hand scissors or hand cutting machine according to the valley dimensions. Following that the valley is layed at its position.

Q16- Is there a risk of thermal bridge formation in the AROOF Roof Panel system?

The AROOF Roof Panel system does not create a thermal bridge

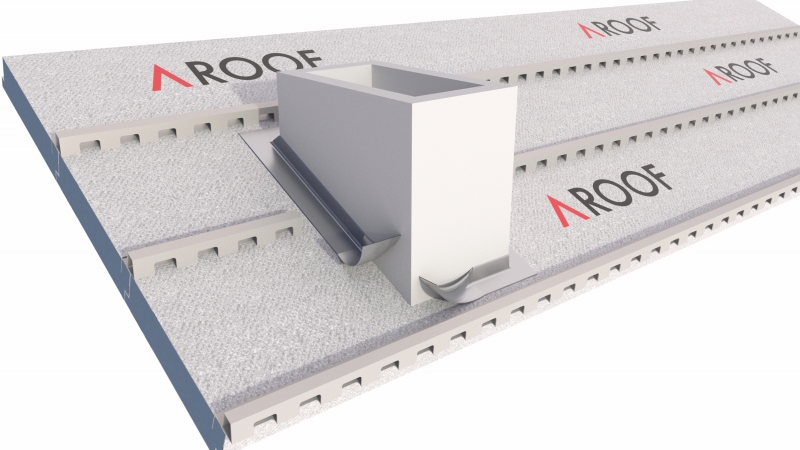

Q17- How should I install chimney tape and chimney strips in AROOF Roof Panel system?

In AROOF Roof Panel system, after applying chimney flashing tape, install chimney strips on chimney flashing tape. And complete the the joints with the silicone application.
